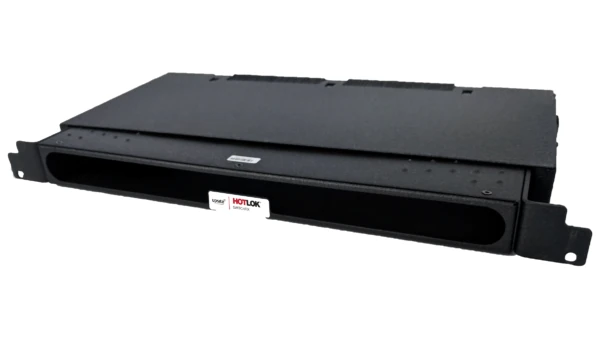

SwitchFix – SF001-PR2

Network switch equipment typically sits at the top and back portion of the server rack. This placement makes it difficult for cold air from the cold aisle to travel from the front of the rack to the intake side(s) of the Network Switch. The SwitchFix® solves this problem by extending from the front of the rack in the cold aisle to the switch at the back of the rack. This allows cold air from the cold aisle to reach the network equipment for proper cooling

The SwitchFix comes in a variety of sizes to meet the needs of many switches currently used in today’s data centers. Each unit adjusts in depth to ensure an optimal flow of cooled air through to the installed switch. The SwitchFix easily accommodates front, rear, and side switch intakes and exhaust. The SwitchFix’s passive airflow system channels air from the cold aisle to the switch, allowing cold air to pass through the switch intakes and prevents bypass and recirculated airflow. This prevents hot exhaust air from recycling through the installed equipment. This passive switch cooling solution can improve switch performance and life expectancy.

Product Number
SF001-PR2  SwitchFix, Passive, Rear Intake, 1U, Adjustable 7.63″-11.63″, Black
MSRP: $330.00 (each)

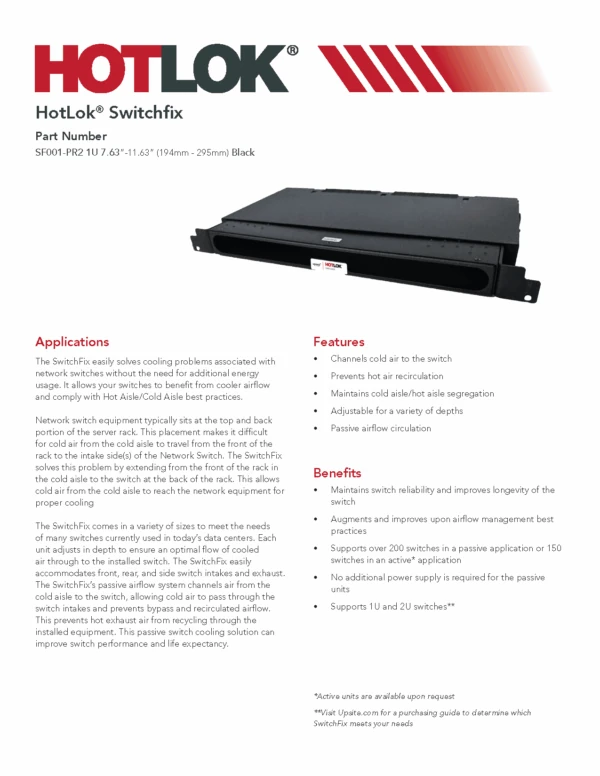

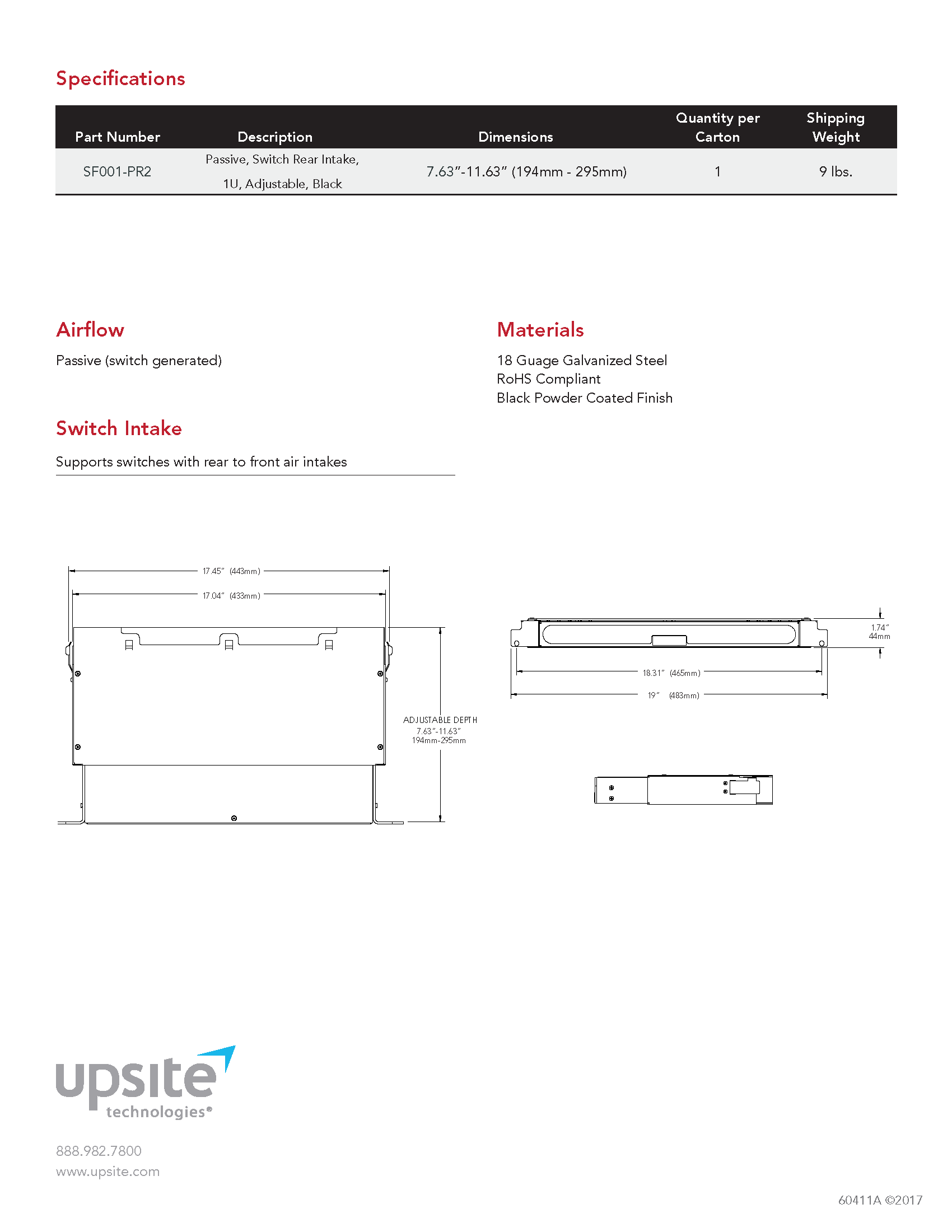

Which SwitchFix should you get? Refer to the SwitchFix Finder in the tabs below.

SKU: SF001-PR2 Category: Tags: ,

Airflow Management Awareness Month

Our 6th annual Airflow Management Awareness Month webinar series has concluded. Watch the webinars on-demand now!

  • Channels cold air to the switch
  • Prevents hot air recirculation
  • Maintains cold aisle/hot aisle segregation
  • Adjustable for a variety of depths
  • Passive airflow circulation
  • Maintains switch reliability and improves longevity of the switch
  • Augments and improves upon airflow management best practices
  • Supports over 200 switches in a passive application or 150 switches in an active* application
  • No additional power supply is needed
  • Supports 1U and 2U switches**

*Active units are available upon request.
**See the SwitchFix Cross Reference Guide to determine which SwitchFix meets your needs.

Switch ManufacturerSwitch ModelRMUSwitch DepthSwitch IntakeSwitch ExhaustUpsite Part NumberAlternative Upsite Part Number
ACS48 Cyclade1sidesideSF001-PS1
Alcatel6850 Omniswitch1sidesideSF001-PS1
Alcatel6900 Omniswitch122"rearfrontSF001-PR1
Alcatel6900 Omniswitch122"frontrearCustom
Allied TelesysAT9924T116.7"frontrearCustom
Arista7010T110"frontrearCustom
Arista7010T110"rearfrontSF001-PR5
Arista7048-A116"rearfrontSF001-PR4SF001-PR3
Arista7048-A116"frontrearCustom
Arista7048T116"frontrearCustom
Arista7048T116"rearfrontSF001-PR4SF001-PR3
Arista7050SX118.1"frontrearCustom
Arista7050SX118.1"rearfrontSF001-PR2
Arista7050SX218.1"frontrearCustom
Arista7050SX218.1"rearfrontSF002-PR3
Arista7050T116"frontrearCustom
Arista7050T116"rearfrontSF001-PR4SF001-PR3
Arista7050TX-128218.1"rearfrontSF002-PR3
Arista7050TX-128218.1"frontrearCustom
Arista7060116"rearfrontSF001-PR4SF001-PR3
Arista7148SX116"frontrearCustom
Arista7148SX116"rearfrontSF001-PR4SF001-PR3
Arista7150116"frontrearCustom
Arista7150116"rearfrontSF001-PR4SF001-PR3
Arista7260218"rearfrontSF002-PR3
Arista7280CR222.2"RearFrontSF002-PR2
Arista7280S116"rearfrontSF001-PR4SF001-PR3
Arista7280SE120.6frontrearCustom
Arista7280SE120.6rearfrontSF001-PR2
Aruba3400111.7"sidesideSF001-PS1
Blade RackswitchG8052117.5"frontrearCustom
Blade RackswitchG8052117.5"rearfrontSF001-PR4SF001-PR3
Brocade300112.07"rearfrontSF001-PR5
Brocade300a112.07"rearfrontSF001-PR5
Brocade624117.2"frontrearCustom
Brocade624117.2"rearfrontSF001-PR2
Brocade624-E117.2"frontrearCustom
Brocade624-I117.2"rearfrontSF001-PR2
Brocade624S117.2"front/ siderearSF001-PD1
Brocade648117.2"frontrearCustom
Brocade648117.2"rearfrontSF001-PR2
Brocade648-E117.2"frontrearCustom
Brocade648-I117.2"rearfrontSF001-PR2
Brocade648S117.2"front/ siderearSF001-PD1
Brocade6520224.01"frontrearCustom
Brocade6520224.01"rearfrontSF002-PR1
Brocade6740116.25"frontrearCustom
Brocade6740116.25"rearfrontSF001-PR4SF001-PR3
Brocade6740T121.12"rearfrontSF001-PR2
Brocade6740T121.12"frontrearCustom
Brocade6740T-1G121.12"frontrearCustom
Brocade6740T-1G121.12"rearfrontSF001-PR2
Brocade6940-144S218"rearfrontCustom
Brocade6940-144S218"frontrearCustom
Brocade6940-36Q116.25"rearfrontSF001-PR4SF001-PR3
Brocade6940-36Q116.25"frontrearCustom
Cisco1001-X-AES-AX118.5"frontrearCustom
Cisco2010P1sidesideSF001-PS1
Cisco2148120"rearfrontSF001-PR2
Cisco2148T-1GE120"rearfrontSF001-PR2
Cisco2232117.7"rearfrontSF001-PR4SF001-PR3
Cisco2232PP-10GE117.7"rearfrontSF001-PR4SF001-PR3
Cisco2248117.7"rearfrontSF001-PR4SF001-PR3
Cisco2248TP117.7"frontrearCustom
Cisco2248TP117.7"rearfrontSF001-PR2
Cisco2348TQ117.07"frontrearCustom
Cisco2348TQ117.07"rearfrontSF001-PR4SF001-PR3
Cisco2348UPQ114.05"rearfrontSF001-PR5
Cisco26201siderearSF001-PS1
Cisco2901117.3"frontsideCustom
Cisco2911212"sidesideCustom
Cisco2921215.5"rear/sidefrontCustom
Cisco29501siderearSF001-PD1
Cisco2951218.5"rear/sidefrontCustom
Cisco29601siderearSF001-PD1
Cisco2960-24LC-S113"sidesrearSF001-PD1
Cisco2960-24-S19.3"sidesrearSF001-PD1
Cisco2960G112.9"frontrearCustom
Cisco2960G112.9"rearfrontSF001-PR5
Cisco2960S1siderearSF001-PD1
Cisco2960-X111-14.5"rearfrontSF001-PR5
Cisco3048119.7"frontrearCustom
Cisco3048119.7"rearfrontSF001-PR2
Cisco3064119.7"rearfrontSF001-PR2
Cisco3064119.7"frontrearCustom
Cisco31128PQ223.7frontrearCustom
Cisco31128PQ223.7rearfrontSF002-PR1
Cisco3132Q119.7"rearfrontSF001-PR2
Cisco3172119.7"rearfrontSF001-PR2
Cisco3524118.38"rearfrontSF001-PR2
Cisco3524118.38"frontrearCustom
Cisco3548118.38"frontrearCustom
Cisco3548118.38"rearfrontSF001-PR2
Cisco3550-241siderearSF001-PD1
Cisco3550-481siderearSF001-PD1
Cisco3560-241sidesideSF001-PS1
Cisco3560-481sidesideSF001-PS1
Cisco3560G-241sidesideSF001-PS1
Cisco3560G-481sidesideSF001-PS1
Cisco3560x118-19.5"front/SiderearCustom
Cisco3650-24P117.625"front/siderearCustom
Cisco3650-24T117.625"front/siderearCustom
Cisco3650-48F119.125"front/siderearCustom
Cisco3650-48P117.625"front/siderearCustom
Cisco3650-48T117.625"front/siderearCustom
Cisco37501front/siderearCustom
Cisco3750-24P117.5"front/siderearCustom
Cisco3750-48P117.5"front/siderearCustom
Cisco3750E1siderearSF001-PD1
Cisco3750E-12D1frontrearCustom
Cisco3750G1sidesideSF001-PS1
Cisco3750X117.5"front/siderearCustom
Cisco3850117.5-19.2"frontrearCustom
Cisco3850117.5-19.2"rearfrontSF001-PR2
Cisco3850-48F-L119.2"frontrearCustom
Cisco42001sidesrearSF001-PD1
Cisco44001right sideleft sideSF001-PS1
Cisco4431-AX/K9119.97"frontrearCustom
Cisco4501219.25"sidesideCustom
Cisco4900M2sidesideCustom
Cisco4924116"sidesrearSF001-PD1
Cisco4928116.1"siderearSF001-PD1
Cisco4948116.14"sidesrearSF001-PD1
Cisco4948E1frontrearCustom
Cisco4948E-BDL1frontrearCustom
Cisco4948E-E1frontrearCustom
Cisco4948E-F119.4"rearfrontSF001-PR2
Cisco4948E-F_BDL119.4"rearfrontSF001-PR2
Cisco4948E-F-E119.4"rearfrontSF001-PR2
Cisco4948E-F-S119.4"rearfrontSF001-PR2
Cisco4948E-S1frontrearCustom
Cisco4948-S1sidesrearSF001-PD1
Cisco49801frontrearCustom
Cisco49801rearfrontSF001-PR4SF001-PR3
Cisco55101frontrearCustom
Cisco55401frontrearCustom
Cisco5548129.5"frontrearCustom
Cisco5548UP129.5"rearfrontCustom
Cisco55501frontrearCustom
Cisco5555119.1"frontrearCustom
Cisco5672UP130"rearfrontCustom
Cisco5672UP130"frontrearCustom
Cisco65034sidesideCustom
Cisco6504-E5sidesideCustom
Cisco6506-E (open post only)12sidesideCustom
Cisco6509 (open post only)15sidesideCustom
Cisco6509E (open post only)15r sidel sideCustom
Cisco6509-NEB20frontrearCustom
Cisco6509-NEB-A21frontrearCustom
Cisco6509-V-E21frontrearCustom
Cisco6513E19r sidel sideCustom
Cisco6807-XL (open post only)10r sidel sideCustom
Cisco6880-X (open post only)5r sidel sideCustom
Cisco7009 (open post only)14sidesideCustom
Cisco7018 (open post only)25sidesideCustom
Cisco90012sidesideCustom
Cisco900610siderearCustom
Cisco90339.22"sidesideCustom
Cisco9148118.89"rearfrontSF001-PR2
Cisco93120TX222.5"rearfrontSF002-PR2
Cisco93120TX222.5"frontrearCustom
Cisco93128TX322.5"2U rearfrontSF002-PR2
Cisco93180YC122.5"rearfrontSF001-PR1
Cisco9336222.5"rearfrontSF002-PR2
Cisco9336PQ222.5"frontrearCustom
Cisco9336PQ222.5"rearfrontSF002-PR2
Cisco9272122.5"frontrearCustom
Cisco9272122.5"rearfrontSF001-PR1
Cisco9372PX122.5"rearfrontSF001-PR1
Cisco9372PX122.5"frontrearCustom
Cisco9372TX122.5"frontrearCustom
Cisco9372TX122.5"rearfrontCustom
Cisco9396222.5"rearfrontSF002-PR2
Cisco9396222.5"frontrearCustom
Cisco9396PX222.5"rearfrontSF002-PR2
Cisco9396PX222.5"frontrearCustom
Cisco9396TX222.5"frontrearCustom
Cisco9396TX222.5"rearfrontSF002-PR2
Cisco951314sidesideCustom
CiscoDS-C9396S222.28"rearfrontSF002-PR2
CiscoS501sidesideSF001-PS1
Dell2848110"sidesideSF001-PS1
Dell55241sidesideSF001-PS1
Dell55481sidesideSF001-PS1
Dell55481sidesideSF001-PS1
Dell62241sidesideSF001-PS1
Dell62481sidesideSF001-PS1
Dell70241sidesideSF001-PS1
Dell7048 series1sidesideSF001-PS1
Dell8024 series1frontrearCustom
Dell81321frontrearCustom
Dell8132F1frontrearCustom
Dell81641frontrearCustom
Dell8164F1frontrearCustom
DellN4032F118.11"frontrearCustom
DellN40641frontrearCustom
DellS3048112.6"rearfrontSF001-PR5
DellS4048117.13"rearfrontSF001-PR4SF001-PR3
DellS4810118.11"rearfrontSF001-PR2
DellS4810118.11"frontrearCustom
DellS4820T118.11"frontrearCustom
DellS4820T118.11"rearfrontSF001-PR2
DellS6000118.11"frontrearCustom
DellS6000118.11"rearfrontSF001-PR2
Extreme NetworksSummit X4301sidesideSF001-PS1
Extreme NetworksSummit X450A115.3"sidesideSF001-PS1
Extreme NetworksSummit X670V-48x119.25"frontrearCustom
Extreme NetworksSummit X670V-48x119.25"rearfrontSF001-PR2
F5F5-15001R-sideL-sideSF001-PS1
F5F5-16001frontrearCustom
FortinetFortigate 800C1sidesrearSF001-PD1
Gigimon2404219.25"sidesideCustom
HP28241L-R sidesrearSF001-PD1
HP2900-48G1sidesideSF001-PS1
HP2910AI-48G1sidesideSF001-PS1
HP2920 series113.23"sidesideSF001-PS1
HP5130 JG937A114.2"sidesideSF001-PS1
HP5406ZL4sidesideCustom
HP5412ZL7sidesideCustom
HP5500 EI1L-sideR-sideSF001-PS1
HP5500 JG312A116.5"sidesideSF001-PS1
HP5500 SI1L-sideR-sideSF001-PS1
HP5500-48G-4SFP-HI116.5"L-sideR-sideSF001-PS1
HP5700118.1"rearfrontSF001-PR2
HP5800 JC103A116.81"sidesideSF001-PS1
HP5900117.75"rearfrontSF001-PR4SF001-PR3
HP6000B117.45"rearfrontSF001-PR4SF001-PR3
HP6000B117.45"frontrearCustom
HPDL360 G61frontrearCustom
HuaweiCE5810/CE5850/CE58551420mm/Rear/FrontSF001-PR4SF001-PR3
HuaweiS2700-18TP/26TP1220mmLeft SideRight SideSF001-PD1
HuaweiS2700-52P1220mmBoth sidesRearSF001-PD1
HuaweiS2700-PWR1420mmBoth sidesRearSF001-PD1
HuaweiS37001420mmLeft SideRight SideSF001-PD1
HuaweiS5270S=SI1220mmLeft SideRight SideSF001-PD1
HuaweiS5700-EI1420mmLeft SideRight SideSF001-PD1
HuaweiS5700-HI1220mmBoth sidesRearSF001-PD1
HuaweiS5700-SI/LI1420mmLeft SideRight SideSF001-PD1
HuaweiS5710-108C-PWR-HI1470mmBoth sidesRearCustom
HuaweiS5720-EI-C/PC1420mmLeft SideRight SideSF001-PD1
HuaweiS5720-EI-P/X1220mmLeft SideRight SideSF001-PD1
HuaweiS5720-HI1420mmLeft SideRight SideSF001-PD1
HuaweiS5720-SI1420mmLeft SideRight SideSF001-PD1
HuaweiS6700-24-EI/S6700-48-EI1420mmBoth sidesRearSF001-PD1
HuaweiS6720-30C1420mmBoth sidesRearSF001-PD1
HuaweiS6720-54C1420mmBoth sidesRearSF001-PD1
Intel Omnipath100 series117.15"rearfrontSF001-PR4SF001-PR3
JuniperEX2200-24P1sidesrearSF001-PD1
JuniperEX2200-24T1sidesrearSF001-PD1
JuniperEX2200-24T-DC1sidesrearSF001-PD1
JuniperEX2200-48P1sidesrearSF001-PD1
JuniperEX2200-48T1sidesrearSF001-PD1
JuniperEX2200-C-12P POE1nanaCustom
JuniperEX2200-C-12T non POE1top -sidesrearSF001-PD1
JuniperEX3300112"frontrearCustom
JuniperEX3300112"rearfrontSF001-PR5
JuniperEX42001sidesrearSF001-PD1
JuniperEX4300116.5"rearfrontSF001-PR4SF001-PR3
JuniperEX4300-48T-AFI116.5"rearfrontSF001-PR4SF001-PR3
JuniperEX4550118.5"rearfrontSF001-PR2
JuniperJ6350221.13"frontrearCustom
JuniperMAG6610127.25"frontrearCustom
JuniperMX4808sidesideCustom
JuniperNS52002sidesideCustom
JuniperQFX5100-48S-AFI120.5"rearfrontSF001-PR2
JuniperQFX5100-48T-AFI120.48"frontrearCustom
JuniperQFX5100-48T-AFI120.48"rearfrontSF001-PR2
JuniperSA40001siderearSF001-PS1
JuniperSRX1400313.8"l-sider-sideCustom
JuniperSRX2401sidesideSF001-PS1
JuniperSRX3600525.5"sidesideCustom
JuniperSRX5400524.5"r-sidel-sideCustom
JuniperSRX550218.2"sidesideCustom
JuniperSRX650218.2"l-sider-sideCustom
JuniperSSG320M115.1"sidesideSF001-PS1
JuniperSSG550M2frontrearCustom
JuniperWLC28002sidesrearCustom
MellanoxSX-6036G124.7"rearfrontCustom
NetGearGS7252TXS110.1"sidesideSF001-PS1
NetGearGSM 7224S1sidesrearSF001-PD1
NetGearGSM 7252S (M5300)1sidesrearSF001-PD1
NetGearXSM 7224SfrontrearCustom
Palo Alto NetworksM1001frontrearCustom
Palo Alto NetworksPA 5060221"sidesideCustom
Palo Alto NetworksPA3020117"sidesideSF001-PS1
SMCSMCGS18C-Smart111"sidesideSF001-PS1
SonicNSA 35001siderearSF001-PD1
Watchguard-FireboxM440115"frontrearCustom
ZTE2850-18TM/26TM1200mmLeft SideRight Side/RearSF001-PD1
ZTE2850-52TC1280mmLeft SideRight Side/RearSF001-PD1
ZTE2850-9TT/9TS1130mmLeft SideRight Side/RearSF001-PD1
ZTE2950-10TC/2950-10PC1220mmLeft SideRight Side/RearSF001-PD1
ZTE2950-18TC/28TC/18PC/1220mmLeft SideRight SideSF001-PD1
ZTE2950-28PM/2950-52PM1440mmLeft SideRight SideSF001-PD1
ZTE2950-52TS1280mmLeft SideRight Side/RearSF001-PD1
ZTE3928E1220mmLeft SideRight SideSF001-PD1
ZTE3950-28TM/28PM/28SM1280mmLeft SideRight SideSF001-PD1
ZTE3950-52TC1360mmLeft SideRight Side/RearSF001-PD1
ZTE3952E2220mmLeft SideRight SideCustom
ZTE5250-12TC/5250-12PC1220mmLeft SideRight Side/RearSF001-PD1
ZTE5250-28TM-L1440mmLeft SideRight Side/RearSF001-PD1
ZTE5250-28TS-L1220mmLeft SideRight Side/RearSF001-PD1
ZTE5916E/5928E1220mmLeft SideRight SideSF001-PD1
ZTE5950-24T/28TM/28PM1360mmLeft SideRight SideSF001-PD1
ZTE5950-28TM1320mmLeft SideRight SideSF001-PD1
ZTE5950-48T/52SM1400mmLeft SideRight SideSF001-PD1
ZTE5952E2220mmLeft SideRight SideCustom
ZTE59601440mm/Rear/FrontSF001-PR4SF001-PR3
Cisco9236122.5"RearFrontSF001-PR1
Arista7260QX218"RearFrontSF002-PR3
NetGearM43001FrontRearCustom
Brocade6510117.23"RearFrontSF001-PR4SF001-PR3
ARISTA7050S116"RearFrontSF001-PR4SF001-PR3
ARISTA7050S116"FrontRearCustom
CiscoSG300113.78:SideSideSF001-PS1
CiscoSG350113.78"SideSideSF001-PS1
AudiocodesMediant 3000230CMSideSideCustom
CiscoNCS-5501121.7"RearFrontSF001-PR1
CiscoNCS-5501121.7"FrontRearCustom
CiscoASR 9033SideSideCustom
CiscoASR 9077SideSideCustom
CiscoASR 900610SideRearCustom
Nokia7750-SR78SideRearCustom
HuaweiCX-600-X13SideSideCustom
HuaweiCX600-X25SideSideCustom
Avaya48261SideSideSF001-PS1
Avaya48501SideSideSF001-PS1
Arista7280QR120.6"RearFrontSF001-PR2
Arista7280QR120.6"FrontRearCustom
Arista7280SR116"RearFrontSF001-PR4SF001-PR3
Arista7280SR116"FrontRearCustom
Arista7280TR116"RearFrontSF001-PR4SF001-PR3
Arista7280TR116"FrontRearCustom
Arista7050SX-128218.1"RearFrontSF002-PR3
Arista7050SX-64116"RearFrontSF001-PR4SF001-PR3
Arista7050SX-72Q116"RearFrontSF001-PR4SF001-PR3
Arista7260QX-64218"RearFrontSF002-PR3
Arista7280CR-48222.2"RearFrontSF002-PR2
Arista7280SE-64120.6"RearFrontSF001-PR2
Arista7280SR-48C6116"RearFrontSF001-PR4SF001-PR3
Cisco3048TP119.7"RearFrontSF001-PR2
Cisco9272Q224.5"RearFrontSF002-PR1
Cisco9236C122.5"RearFrontSF001-PR1
AvayaVSP7254XSQ118.25"RearFrontSF001-PR2
AvayaVSP7254XSQ118.25"FrontRearCustom
JuniperQFX5200120.48"RearFrontSF001-PR2
Brocade6505117.45"RearFrontSF001-PR4SF001-PR3
HPA5500 48G EL1SidesideSF001-PS1
Fire RatingRoHS Compliance
UL 94 HBYes

Pin It on Pinterest
