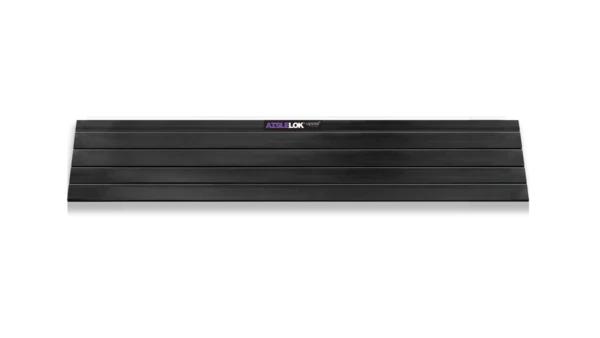

26″ Magnetic Under Rack Panel

The Magnetic Under Rack Panel by Upsite is a quick and easy way to improve airflow management by either blocking bypass airflow or exhaust air recirculation. It employs a unique sealing technology which allows easy, tool-less modifications for just the right placement and height. It’s a perfect complement to existing blanking panels and accommodates thermal efficiencies in the data center.

Product Number
10226 26″ (660 mm) Magnetic Under Rack Panel
MSRP: $200.00 (carton of 10)



SKU: 10226 Category: Tags: , , Brand:

Learn About Modular Containment

Get our AisleLok Modular Containment brochure.

Airflow Management Awareness Month

Free Informative webinars every Tuesday in June.

  • Available in two widths; 26″ (660 mm) and 33.5″ (851 mm)
  • Prescored at 1-inch increments
  • Magnetic application
  • Rigid PVC material with UL94 HB
  • Economical solution

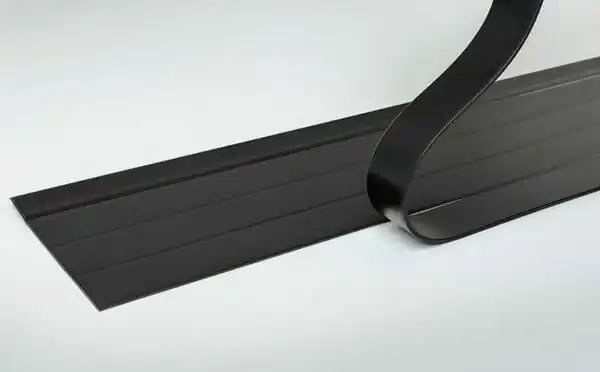

  • Easily install, remove, and relocate with magnetic application
  • Toolless installation and height adjustment reduces overall install time
  • Effective seal blocks bypass airflow and or exhaust recirculation and resulting hot spots
  • Improves IT equipment reliability and extends equipment life
  • Supports cooling unit fan speed reduction
  • Supports higher supply air temperatures and free cooling utilization
