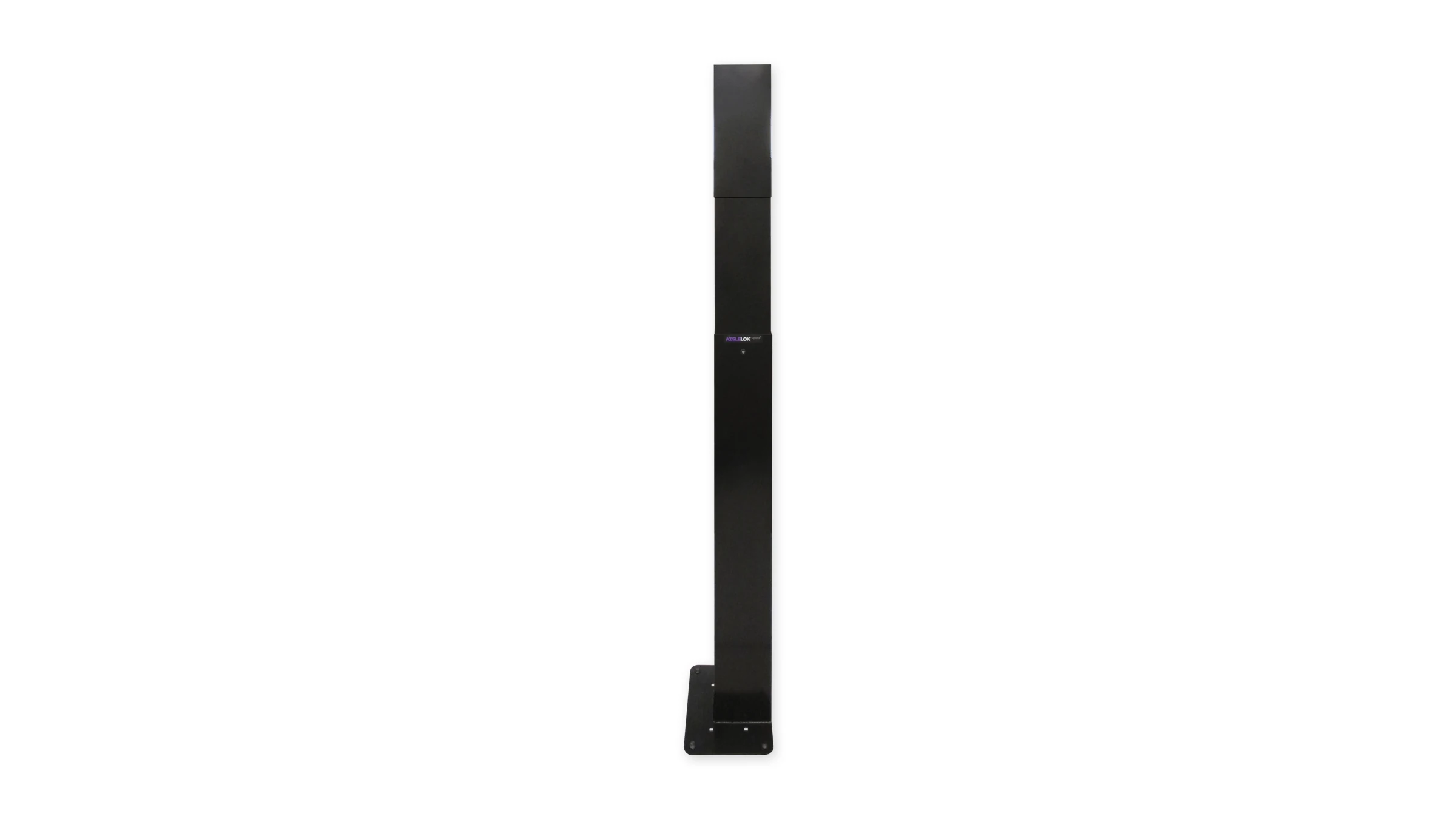

Adjustable Mounting Post

The NEW AND IMPROVED AisleLok® Adjustable Mounting Post now has more usability and rigidity.

  • Can now be fixed at four heights: 78.75″(~42U), 84″(~45U), 89.25″(~48U), 92.75″(~50U) – enables use with a wide range of cabinet heights
  • D-rings are welded into corners at the top – creates an attachment point for the Tethers of our Sliding Doors

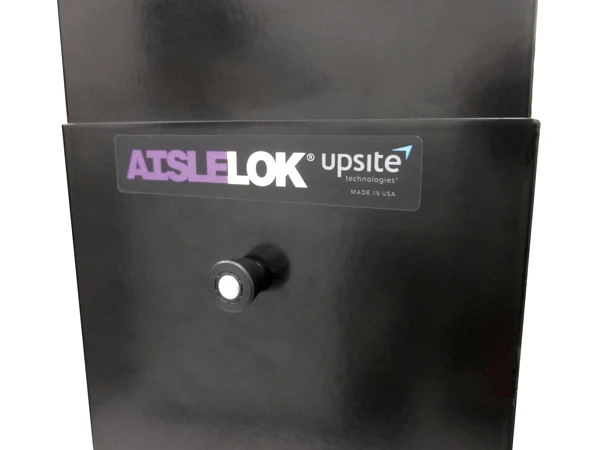

  • Height secured by two 3/8″ bolts – very secure method for securing the top and bottom sections
  • Height adjustment holes on two sides – allows the base plate to be mounted in a wider range of positions

The Adjustable Mounting Post is designed as a support for the attachment of AisleLok Bi-Directional Doors and AisleLok Adjustable Rack Gap Panels and AisleLok Sliding Doors. The Adjustable mounting post solves a variety of containment configurations challenges such as the locations a cabinet or rack cannot be installed, uneven aisle lengths, and aisles with a single row of cabinets.

Note: Product # 10169 replaces 10167-45B

Product Number
10169 Adjustable Mounting Post, 42U-50U, Black
MSRP: $702.00 (each)



SKU: 10169 Category: Tags: ,

Learn About Modular Containment

Get our AisleLok Modular Containment brochure.

Airflow Management Awareness Month

Free Informative webinars every Tuesday in June.

  • Easily adjustable to a variety of heights (42U, 45U, 48U, and 50U)

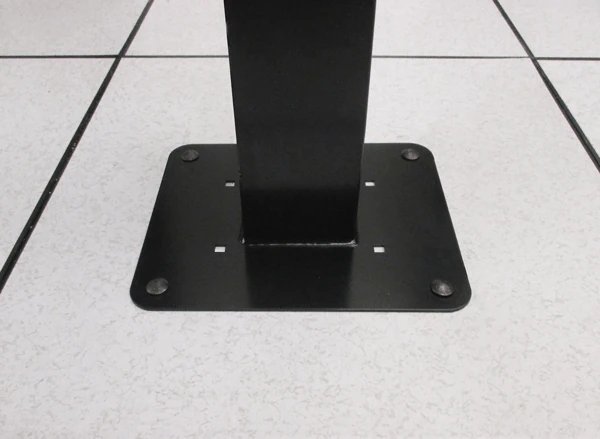

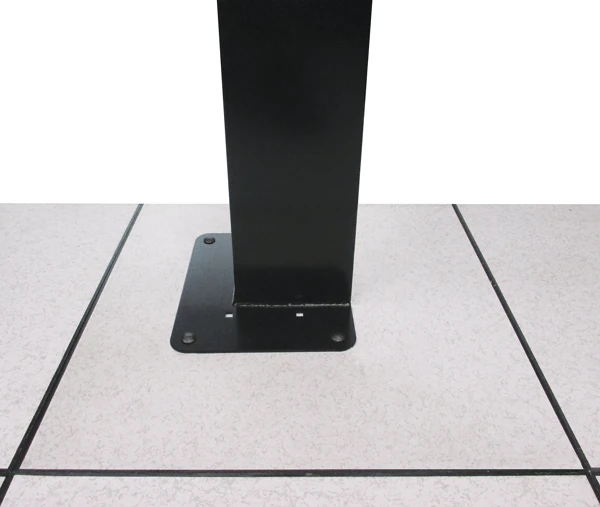

  • A large bottom plate provides a strong structural support
  • Replacement hinge bracket (for Bi-Directional Doors) available for retrofits
  • Easy to assemble, install in minutes – all mounting hardware is included
  • Provides a structural support surface for AisleLok® Sliding Doors, Bi-Directional Doors, and/or Adjustable Rack Gap Panels in various types of applications
  • Will accommodate multiple cabinet heights (42U to 50U)
  • Replacement hinge bracket (for Bi-Directional Doors) available for retrofits
