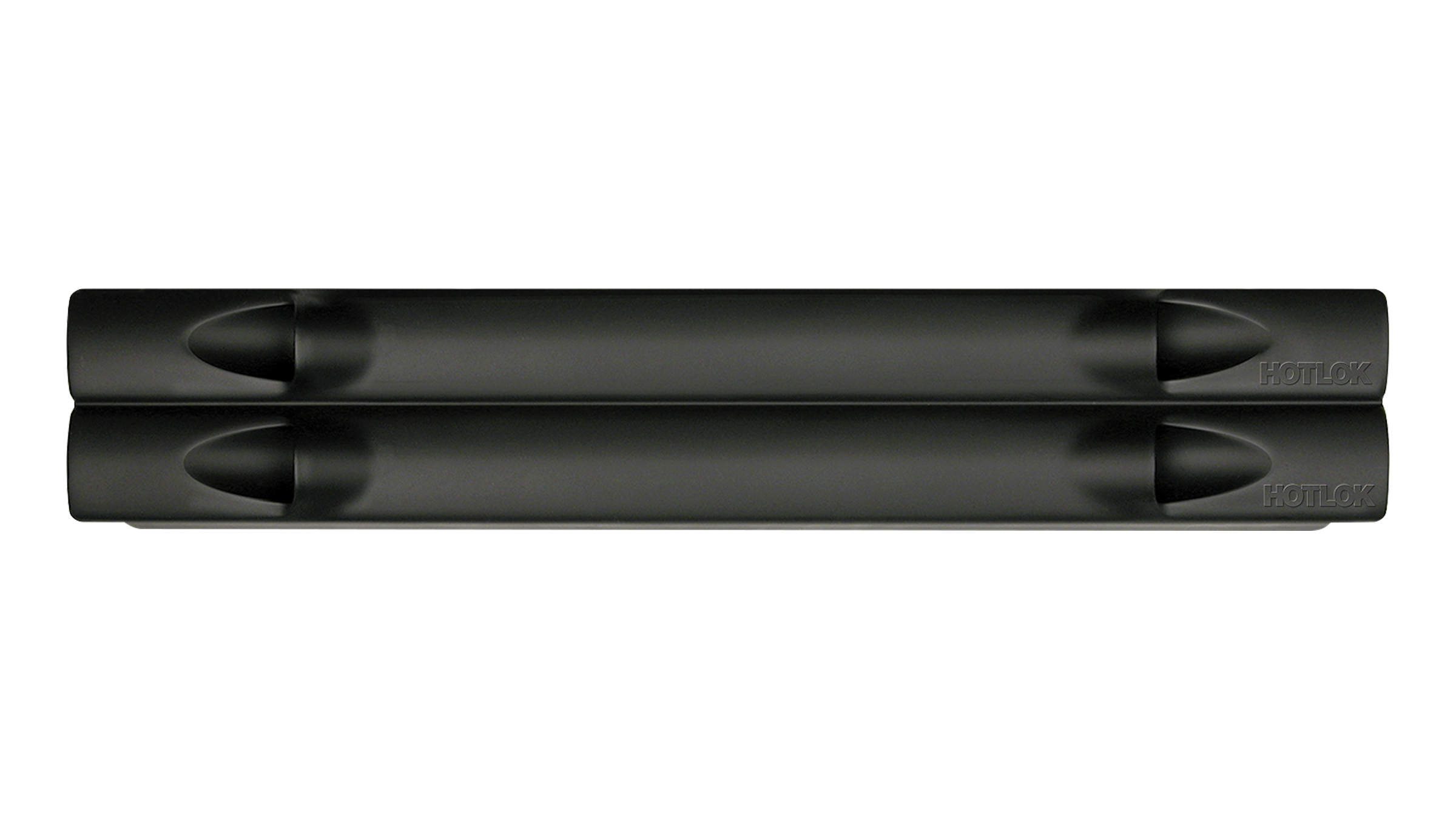

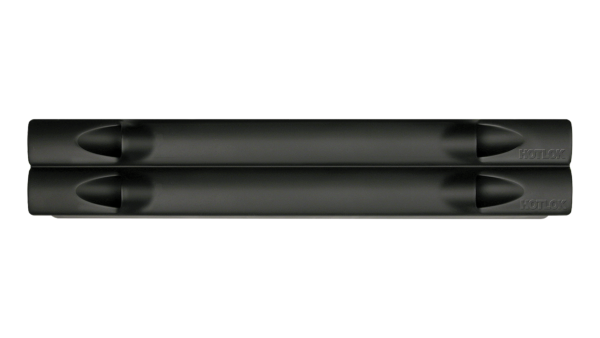

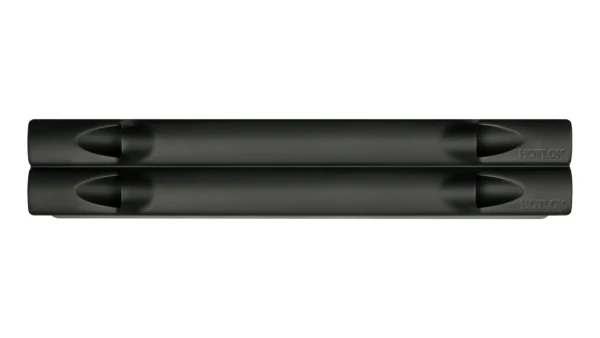

Blanking Panel – 2U

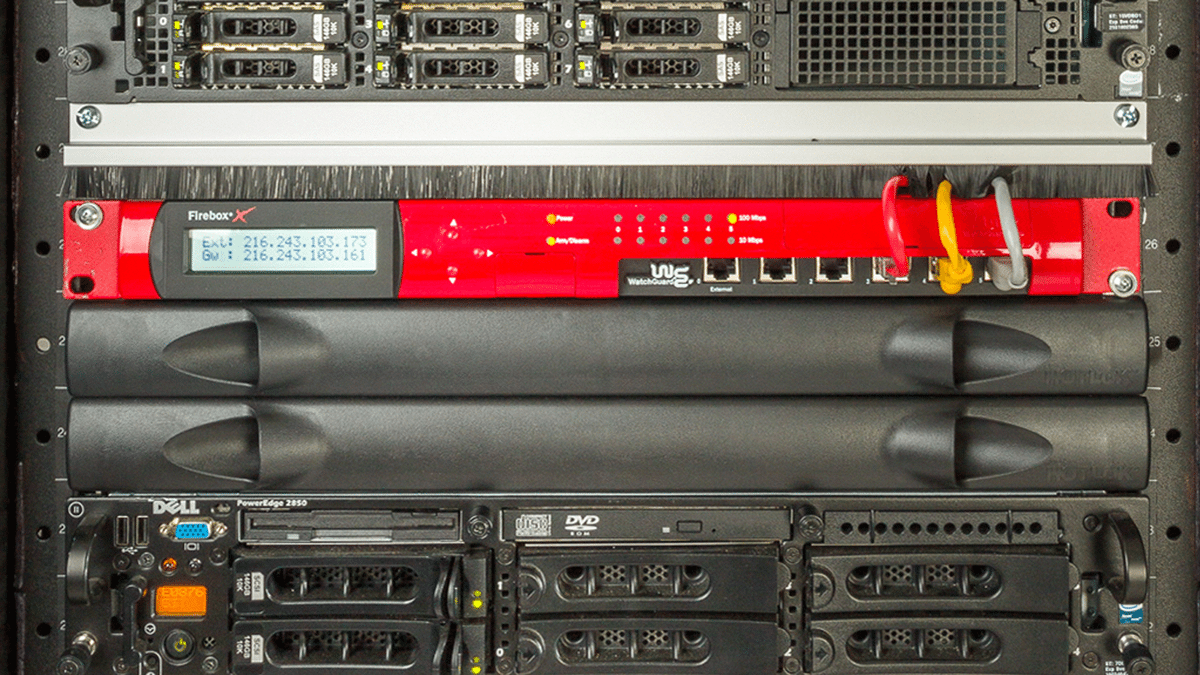

Designed to effectively seal openings in IT equipment cabinets and control airflow for optimized cooling effectiveness. The HotLok® Blanking Panel reduces hot spots and bypass airflow by preventing equipment exhaust air or hot aisle air from migrating to the conditioned air intake stream at the front of the cabinet. HotLok Blanking Panels are available in both 1U and 2U configurations and a choice of traditional black or a more reflective white.

Product Number
10033 2U 19″ (482.5mm) Black Blanking Panel
MSRP: $47.00 (carton of 5)


SKU: 10033 Category: Tags: , ,

Airflow Management Awareness Month

Our 6th annual Airflow Management Awareness Month webinar series has concluded. Watch the webinars on-demand now!

  • Cantilevered sealing vanes eliminate the gap between adjoining blanking panels or with installed equipment to provide the most effective sealing blanking panel on the market, a seal 29% better than the nearest competitor
  • Tool-free, snap-in installation requires no additional parts or components for installation
  • Ergonomic finger grips built in to allow easy-pull removal in standard EIA-310-E openings
  • Interlocking design allows secure stacking (1U panels stack 10 high and 2U panels stack 20 high) for easy storage and convenient carrying, supporting the best practice of keeping particulates and contaminants like cardboard boxes out of the data center
  • Compliant with Directive 2002/95/EC of the European Parliament and the Council on the Restriction of the Use of Certain Hazardous Substances in the Electrical and Electronic Equipment (RoHS)
  • Allows lower temperature air to be delivered to the upper one-third of the cabinet, typically the hottest area and most prone to equipment failure
  • Use in a Hot and Cold Aisle configuration for low or high-density cabinets
  • Controls airflow that could lead to saved energy by allowing adjustment of cooling unit set points
  • Use in existing cabinets for optimization and standardization
  • 1U and 2U versions available for EIA-310-E compliant cabinets

Fire RatingRoHS Compliance
UL 94 HBYes
